HAV 50 S2 Cng vs Kubota MU5502 4WD vs Sonalika DI 734
Share

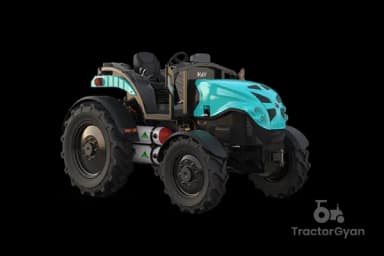

HAV 50 S2 Cng HPNA
CylinderN/A
VS
Kubota MU5502 4WD HP55 HP Cat.
Cylinder4
VS
AD
Sonalika DI 734 HP34
Cylinder3
Hide Common Features
Specification
HAV 50 S2 Cng
Kubota MU5502 4WD
Sonalika DI 734
Engine
- Engine NameN/AV2403-M-DI-TE3, Inline FIP E-CDISNA
- HPNA55 HP Cat.34
- DisplacementN/A2434 cc2780 CC
- CylinderN/A43
- Rated RPMN/ANA1800
- Cooling SystemN/ALiquid CooledWater Cooled
- Fuel Tank CapacityN/A65 L55 Ltr
- Air FilterN/ADry type, Dual elementOil Bath Type With Pre Cleaner
Transmission
- Transmission TypeN/ASynchromeshSliding Mesh
- Number of GearsN/A12 Forward + 4 Reverse8 Forward + 2 Reverse
- Clutch TypeN/ADouble ClutchSingle
- Clutch SizeN/ANANA
- Max Forward SpeedN/A1.8 - 30.8 kmph34.42 Kmph
- Max Reverse SpeedN/A5.1 - 14 kmphNA
PTO
- PTO HPN/ANANA
- PTO TypeN/AIndependent, Dual PTO / REV PTO (Optional)NA
- PTO SpeedN/ASTD - 540 @2160 ERPM, ECO - 750 @2200 ERPM540
Dimensions & Weight
- LengthN/A3715 mm (Without 3P)NA
- WidthN/A1965 mmNA
- HeightN/ANANA
- Wheel BaseN/A2050 mm1970 mm
- WeightN/A2560 kgNA
- Ground ClearanceN/A415 mmNA
- Turning RadiusN/A2.9 mNA
Hydraulics & Steering
- Lifting CapacityN/A2100 kg, 1800 kg, 1550 kg (at lift point) with POMPA Lift2000 Kg
- SteeringN/APower Steering (Hydraulic Double Acting)Manual / Power Steering
- BrakesN/AOil Immersed Multi Disc BrakesDry Disc Brakes / Oil Immersed Brakes
- 3-Point LinkageN/ANANA
Other Specifications
- Wheel Drive4WD4WD2WD
- Tyre SizeN/A9.5x24 (Front) and 16.9x28 Low & High Lug (Rear)6x16 (Front), 13.6x28 (Rear)
- Price RangeN/A1050000-1106250492188-527813
- WarrantyN/A5 Years5 years or 5000 hours
- SeriesN/AMU SeriesNA
