Massey ferguson 9500 4WD SMART vs New holland 3230 TX Super 2WD vs Sonalika Mileage Master+45 (South)
Share
Massey ferguson 9500 4WD SMART HP50
Cylinder3
VS

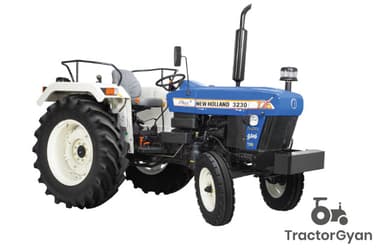

New holland 3230 TX Super 2WD HP45
Cylinder3
VS
AD
Sonalika Mileage Master+45 (South) HP50
Cylinder3
Hide Common Features
Specification
Massey ferguson 9500 4WD SMART
New holland 3230 TX Super 2WD
Sonalika Mileage Master+45 (South)
Engine
- Engine NameNAT-IIIA, Simpson 325.5NA
- HP504550
- Displacement2700 cc2500 cc3067CC
- Cylinder333
- Rated RPM2150 RPM2200 RPM1900
- Cooling SystemNANAWater Cooled
- Fuel Tank Capacity70 L46 L55Lit
- Air FilterNAOil Bath With Pre CleanerWet Type
Transmission
- Transmission TypeConstant MeshConstant Mesh, AFD Side Shift GearsConstant Mesh
- Number of Gears12 Forward + 4 Reverse8 Forward + 8 Reverse / Optional - 8 Forward + 2 Reverse8 Forward + 2 Reverse
- Clutch TypeDual ClutchSOFTEK ClutchSingle
- Clutch SizeNANANA
- Max Forward Speed30.57 kmphNANA
- Max Reverse SpeedNANANA
PTO
- PTO HPNA41 HPNA
- PTO TypeLive PTO, Single SpeedEptraa PTO – 7 speeds PTO with Independent PTO Clutch LeverNA
- PTO Speed540 RPM @ 1789 ERPM540S, 540E540
Dimensions & Weight
- Length3890 mm3330 mmNA
- Width1855 mm1790 mmNA
- Height2310 mm2350 mmNA
- Wheel Base1972 mm1900 mm2080 MM
- Weight2740 kg1873 kgNA
- Ground ClearanceNA395 mmNA
- Turning RadiusNANANA
Hydraulics & Steering
- Lifting Capacity2500 kg1800 kg, HP Hydraulics and Lift-O-Matic1800 kg
- Hydraulic ControlNAAutomatic Depth and Draft ControlNA
- SteeringPower steeringPower SteeringMechanical Steering
- BrakesOil Immersed BrakesOil Immersed Multi Disc BrakeOil Immersed Brakes
- 3-Point LinkageNA3 pooint linkage Category - IINA
Other Specifications
- Wheel Drive4WD2WD2WD
- Tyre Size9.5x24 (Front) and 16.9x28 (Rear)6.0x 16 and (Front) 13.6x 28 (Rear) / 6.5 x16 (Front) and 14.9 x 28 (Rear)6.0X16,13.6X28
- Price Range1057500-1113750670313-670313510938-576563
- Warranty5 years6000 Hour or 6 Year5 years or 5000 hours
- SeriesSmart SeriesTX SeriesMileage Master Series
