Swaraj 735 FE vs New holland 3600 2TX
Share
Swaraj 735 FE HP31-40
Cylinder3
VS

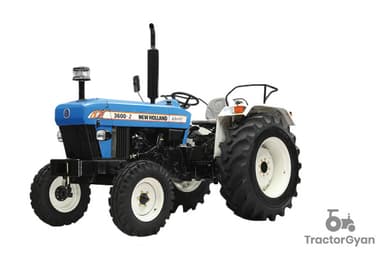

New holland 3600 2TX HP49.5
Cylinder3
VS
Hide Common Features
Specification
Swaraj 735 FE
New holland 3600 2TX
Engine
- Engine NameRV3XTFPT S8000 series, 4 Stroke Naturally Aspirated Engine
- HP31-4049.5
- Displacement2734 ccNA
- Cylinder33
- Rated RPM18002500 RPM
- Cooling SystemWater CooledWater Cooled
- Fuel Tank CapacityNA60 L
- Air FilterNAOil bath type with Pre-cleaner
Transmission
- Transmission TypeSliding Mesh/ Partial constant mesh (Center Shift / Shide Shift)Fully Constant Mesh, Side Shift Gears
- Number of Gears8 F + 2 R8 Forward + 2 Reverse
- Clutch TypeSingle Clutch / Dual ClutchDouble Clutch with Independent Clutch Lever
- Clutch SizeNANA
- Max Forward SpeedNA3.1 - 30.9 kmph
- Max Reverse SpeedNA4.3 - 15.6 kmph
PTO
- PTO HP25.73 kW45 HP
- PTO TypeNAIndependent, 6 Spline 540 Std & GS PTO
- PTO Speed540540@1967
Dimensions & Weight
- Length3450 mm3450 mm
- Width1780 mm1815 mm
- HeightNA2375mm
- Wheel Base2090 mm2045 mm
- Weight1830 kg2060 kg
- Ground ClearanceNA445 mm
- Turning RadiusNANA
Hydraulics & Steering
- Lifting Capacity1650 kg1700 kg, Sensomatic24
- Hydraulic ControlDCV (optional)Automatic Depth and Draft Control
- SteeringPower / Mechanical*Power Steering
- BrakesOil Immersed BrakesOil Immersed Multi Disc Brakes
- 3-Point Linkage3 point linkage3 Point Linkage, CAT.II
Other Specifications
- Wheel Drive2WD2WD
- Tyre Size6.0x16 (Front) and 13.6x28 (Rear)7.5x16 (Front) & 14.9x28 (Rear)
- Price Range557813-576563686000-749999
- Warranty6 Years6 Years T-Warranty
- SeriesFE SeriesTX Series
