Farmtrac 45 Smart vs Ace DI 550 STAR vs Sonalika DI 745 DLX
Share
Farmtrac 45 Smart HP48
Cylinder3
VS

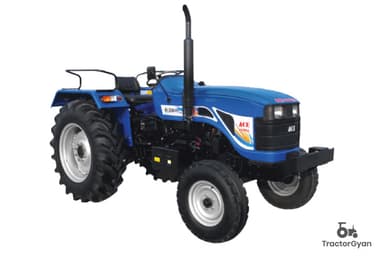

Ace DI 550 STAR HP50
Cylinder3
VS
AD
Sonalika DI 745 DLX HP50
Cylinder3
Hide Common Features
Specification
Farmtrac 45 Smart
Ace DI 550 STAR
Sonalika DI 745 DLX
Engine
- Engine NameNAKirloskar 3R1040, Direct Injestion Naturally Aspirated Diesel EngineHDM
- HP485050
- DisplacementNA3120 cc3065 CC
- Cylinder333
- Rated RPM20002200 RPM1900 rpm
- Cooling SystemCoolant CooledWater CooledWater Cooled
- Fuel Tank Capacity50 Lit55 L55 ltrs
- Air FilterThree Stage Pre Oil CleaningDry Air Cleaner with Clogging SensorOil Bath / DryType with Pre Cleaner
Transmission
- Transmission TypeFull Constant MeshSide Shift Gears (optional)Constant Mesh with Side Shifter
- Number of Gears8 Forward + 2 Reverse8 Forward + 2 Reverse16 Forward + 4 Reverse
- Clutch TypeSingle Clutch/Dual ClutchDry Type, Dual ClutchSingle / Dual (Optional) clutch
- Clutch SizeNA280 mmNA
- Max Forward Speed32.1 Kmph2.6 - 34.0 kmph2.55 - 33.27 kmph
- Max Reverse Speed14.2 Kmph3.6 - 14.3 kmph2.67 - 34.92 kmph
PTO
- PTO HP43 HP42.5 HP43
- PTO Type6 Spline6 SplinesReverse PTO
- PTO Speed540@1810 ERPM540 RPM540
Dimensions & Weight
- Length3240 MM3800 mmNA
- Width1870 mm1850 mmNA
- HeightNA2330 mmNA
- Wheel Base2125 MM2140 mm2100 MM
- Weight1950 KG2145 kgNA
- Ground Clearance460 mm430 mmNA
- Turning Radius3250 mm3.8 m, 3.45 m (withour Brake)NA
Hydraulics & Steering
- Lifting Capacity1800 kg1800 kg2000 Kg
- Hydraulic ControlADDCAutomatic Depth and Draft Control, Open Center, Live HydraulicsNA
- SteeringMechanical - Single Drop Arm/Balanced Power SteeringPower Steering / Mechanical (optional)Power
- BrakesMulti Plate Oil Immersed disc BrakesOil Immersed / Dry Disc Brakes (optional)Oil Immersed Brakes
- 3-Point LinkageNANANA
Other Specifications
- Wheel Drive2WD2WD2WD
- Tyre Size6X16,13.6X287.5x16 (Front) and 14.9x28 (Rear)6.0*16/13.6*28
- Price Range703125-731250628125-665625646875-679688
- Warranty5000 Hour or 5 YearNA5 years or 5000 hours
- SeriesNANADLX Series
