New holland 3037 NX vs Kartar Globetrac 5936 2WD
Share
New holland 3037 NX HP39
Cylinder3
VS

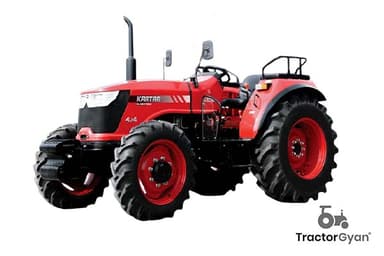

Kartar Globetrac 5936 2WD HP60
Cylinder4
VS
Hide Common Features
Specification
New holland 3037 NX
Kartar Globetrac 5936 2WD
Engine
- Engine NameT-IIIA, Simpson 325, Naturally AspiratedKirloskar 4R 1040, Naturally aspirated Engine
- HP3960
- Displacement2500 cc4160 cc
- Cylinder34
- Rated RPM2000 RPM2200 RPM
- Cooling SystemOil Bath with Pre CleanerCopper Radiator with Coolant - Cooled System & Overflow Reservoir
- Fuel Tank Capacity42 L60 L
- Air FilterOil bath type with Pre-cleanerDry Type Filter with Choke Sensor
Transmission
- Transmission TypeConstant Mesh AFD, Side ShiftCarraro Synchro Shuttle Transmission
- Number of Gears8 Forward + 2 Reverse12 Forward + 12 Reverse
- Clutch TypeSoftek ClutchIndependent (Doubel Clutch)
- Clutch SizeNA310 mm
- Max Forward SpeedNA1.72 - 35.47 kmph
- Max Reverse SpeedNA1.46 - 30.15 kmph
PTO
- PTO HP3551
- PTO TypeNA6 Spline, Ground Speed PTO
- PTO Speed540 RPM540, 540E
Dimensions & Weight
- Length3365 mm4030 mm
- Width1685 mm1920 mm
- Height2300 mmNA
- Wheel Base1920 mm2290 mm
- Weight1800 kg2670 kg
- Ground Clearance380 mm375 mm
- Turning RadiusNANA
Hydraulics & Steering
- Lifting Capacity1500 kg with Lift-O-Matic2200 kg
- Hydraulic ControlLift-O-MaticAutomatic Depth & Draft Control with Lift-O-Matic Button
- SteeringPower SteeringBalanced Power Steering
- BrakesOil Immersed Multi Disc BrakeOil Immersed Brakes
- 3-Point LinkageNA3 Point Linkage, Cat II
Other Specifications
- Wheel Drive2WD2WD
- Tyre Size6x16 (Front) and 13.6X28 (Rear)7.5x16 (Front) and 16.9x28 (Rear)
- Price Range600000-600000882188-920625
- Warranty6 Years T-Warranty2000 Hour / 2 Year
- SeriesNX SeriesNA
