New holland TD 5.90 4WD vs John deere 5036 D vs Sonalika Worldtrac 90 4WD
Share
New holland TD 5.90 4WD HP90
Cylinder4
VS

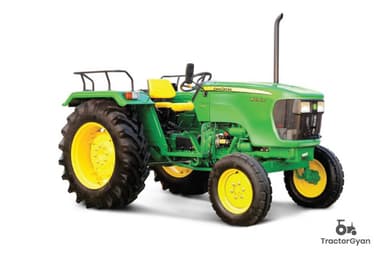

John deere 5036 D HP36
Cylinder3
VS
AD
Sonalika Worldtrac 90 4WD HP90
Cylinder4
Hide Common Features
Specification
New holland TD 5.90 4WD
John deere 5036 D
Sonalika Worldtrac 90 4WD
Engine
- Engine NameIVECONaturally Aspirated EngineNA
- HP903690
- DisplacementNANA4087 CC
- Cylinder434
- Rated RPMNA2100 RPM2200
- Cooling SystemWater CooledCoolant Cooled With Overflow ReservoirWater Cooled
- Fuel Tank Capacity110 Lit60 L77.5 Lit
- Air FilterDry TypeDry type, Dual ElementDry type with air cleaner with precleaner & clogging system
Transmission
- Transmission TypeFully Syncromesh With Synchro ShuttleCollarshiftSynchro Mesh
- Number of Gears20 Forward + 12 Reverse with Creeper8 Forward + 4 Reverse12 Forward + 12 Reverse
- Clutch TypeDual ClutchSingle ClutchDoublel Clutch
- Clutch SizeNANANA
- Max Forward Speed29.09 Kmph3.13 - 34.18 kmph29.52 kmph
- Max Reverse SpeedNA4.1 - 14.87 kmphNA
PTO
- PTO HP76.5NA76.5
- PTO TypeNAIndependent, 6 SplinesMulti Speed Pto
- PTO Speed540 RPM/540 E540 @ 2100 ERPM540 / 540e
Dimensions & Weight
- LengthNA3400 mmNA
- WidthNA1780 mm1980 MM
- HeightNANANA
- Wheel Base2402 MM1970 mm2360 mm
- Weight3770 KG1760 kg3155 KG
- Ground Clearance410 MM390 mm400 MM
- Turning RadiusNA2900 mmNA
Hydraulics & Steering
- Lifting Capacity3565 Kg1600 kg2500 Kg
- Hydraulic ControlAutomatic depth and draft controlAutomatic Depth & Draft controlADDC
- SteeringPower SteeringPower SteeringPower Steering
- BrakesHydraullically Assisted Multi Disc Oil Immersed BrakesOil Immersed Disc BrakesOil immersed brakes
- 3-Point LinkageNA3 Point Linkage, Category - II3 pooint linkage
Other Specifications
- Wheel Drive4WD2WD4WD
- Tyre Size12.4 x 24,18.4 x 306x16 8PR (Front) and 12.4x28 12PR (Rear) / Optional : 13.6x28 (Rear) 12PR9.5X16/18.5X30
- Price Range2437500-2531250570000-6515631302188-1607813
- Warranty6000 Hour or 6 Year5 Years5 years or 5000 hours
- SeriesNAD SeriesNA
