New holland TT3 vs John deere 5065 E 4WD vs Sonalika DI 745 III Gold
Share
New holland TT3 HP49
Cylinder3
VS

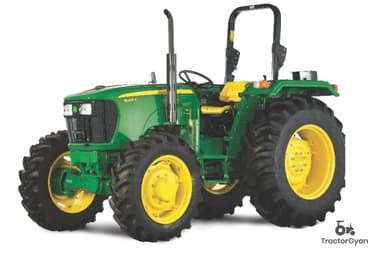

John deere 5065 E 4WD HP65
Cylinder3
VS
AD
Sonalika DI 745 III Gold HP50 HP Cat.
Cylinder3
Hide Common Features
Specification
New holland TT3
John deere 5065 E 4WD
Sonalika DI 745 III Gold
Engine
- Engine NameNANAE 3.5 Engine
- HP496550 HP Cat.
- DisplacementNANA3532
- Cylinder333
- Rated RPM1400 rpm24002000
- Cooling SystemNACoolant Cooled With Overflow ReservoirNA
- Fuel Tank Capacity62 ltrs68 Lit55 L
- Air FilterNADry Type Dual ElementWet Type
Transmission
- Transmission TypeMechanical constantmeshSynchromesh TranmissionConstant Mesh, Side Shift
- Number of Gears8 Forward + 2 Reverse9 Forward + 3 Reverse16 Forward + 4 Reverse
- Clutch TypeDoubleDualDual / Double Clutch (Optional)
- Clutch SizeNANANA
- Max Forward Speed33.24 kmph30.0 Kmph2.37-35.74 kmph
- Max Reverse SpeedNA23.2 KmphNA
PTO
- PTO HPNA55.3NA
- PTO Type540Independent, 6 Splines540 Multi Speed & RPTO, Global PTO (Optional)
- PTO Speed540 @ 2016540 @2376 ERPM540
Dimensions & Weight
- Length3700 mm3590 MMNA
- Width1690 MM1880 MMN/A
- HeightNANANA
- Wheel Base1960/19902050 MMNA
- Weight21602450 KGNA
- Ground Clearance355 MM465 MMN/A
- Turning Radius2.90 M3528 MMN/A
Hydraulics & Steering
- Lifting Capacity1800 kg2000 kg2000 kg
- Hydraulic ControlNAAutomatic depth and draft control5G Hydraulics with Real Time Sensing and 140+ control settings and Extra Draft Range
- SteeringNAPower tiltable up to 25? with lock latchPower Steering
- BrakesOil immersed multidisc braking systemSelf adjusting and self equalising, Hydraullically actuated, Oil immersed Disc BrakesOil Immersed Brakes
- 3-Point Linkage3 pooint linkage Category I & II3 pooint linkage Category - IIHeavy Duty Linkage
Other Specifications
- Wheel Drive4WD4WD2WD
- Tyre Size8.0x18/14.9x2811.2 x24/16.9x307.5x16 (Front) and 14.9x28 (Rear)
- Price RangeN/A1420313-1520625750000-800000
- WarrantyNA5000 Hour or 5 Year6 Years
- SeriesNAE SeriesGold Series
