Swaraj 724 XM vs Massey ferguson 6026 MaxPro Wide Track
Share
Swaraj 724 XM HP25-30
Cylinder2
VS

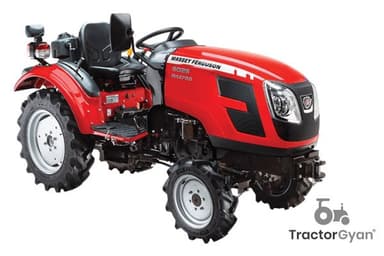

Massey ferguson 6026 MaxPro Wide Track HP26
Cylinder3
VS
Hide Common Features
Specification
Swaraj 724 XM
Massey ferguson 6026 MaxPro Wide Track
Engine
- Engine NameRV-2 XM + 3A, 4 Stroke, Direct injectionMVS3L2-T3CC10
- HP25-3026
- Displacement1824 cc1318 cc
- Cylinder23
- Rated RPM1800NA
- Cooling SystemWater Cooled with no loss tankNA
- Fuel Tank CapacityNA23 L
- Air Filter3 - Stage Oil Bath TypeNA
Transmission
- Transmission TypeNAPartial Constant Mesh
- Number of Gears8 F + 2 R9 Forward + 3 Reverse
- Clutch TypeHeavy Duty Single Dry Plate TypeSingle Diaphragm
- Clutch Size280 mmNA
- Max Forward Speed2.19 - 27.78 Kmph24.9 kmph
- Max Reverse Speed2.74-10.77 KmphNA
PTO
- PTO HP16.3 kWNA
- PTO TypeN/ALive, Two speed PTO
- PTO Speed21 Spline 1650 r/min for rated engine speed at 1000 r/min, 6 Spline 540 r/min (optional)540 RPM @ 2322 ERPM, 750 RPM @ 2450 ERPM
Dimensions & Weight
- Length3320 mm2960 mm
- Width1675 mm1100 mm
- Height2270 mm1315 mm
- Wheel Base1935 mm1550 mm
- Weight1750 Kg990 Kg
- Ground Clearance375 mmNA
- Turning RadiusNANA
Hydraulics & Steering
- Lifting Capacity1000 kg739 Kg
- Hydraulic ControlLive Hydraulic- Position control, automatic draft control, mix control and hydraulic lift pumpDraft with Auto Sense, Position and Response Control
- SteeringHeavy duty single drop arm steering, Power steering (optional)Power steering
- BrakesSelf energizing Water sealed disk brakes and parking brakesMulti Disc Oil Immersed Brakes
- 3-Point Linkage3 point linkage suitable for Cat- I & II type implements3 Point Linkage, CAT-I
Other Specifications
- Wheel Drive2WD4WD
- Tyre Size6x16 (Front) and 12.4x28/13.60x28 (optional) (Rear)180/85 D 12 (Front) and 8.3X20 (Rear)
- Price Range454688-473438548438-595313
- Warranty2 Years / 2000 Hours5 years or 5,000 hours
- SeriesXM SeriesMaxpro Series
