Swaraj 724 XM vs New holland 3037 TX Smart 2WD
Share
Swaraj 724 XM HP25-30
Cylinder2
VS

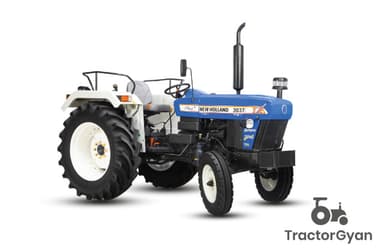

New holland 3037 TX Smart 2WD HP39
Cylinder3
VS
Hide Common Features
Specification
Swaraj 724 XM
New holland 3037 TX Smart 2WD
Engine
- Engine NameRV-2 XM + 3A, 4 Stroke, Direct injectionT-IIIA, Simpson 325
- HP25-3039
- Displacement1824 ccNA
- Cylinder23
- Rated RPM18002000
- Cooling SystemWater Cooled with no loss tankNA
- Fuel Tank CapacityNA42 L
- Air Filter3 - Stage Oil Bath TypeOil bath type with Pre-cleaner
Transmission
- Transmission TypeNAConstant Mesh AFD Side Shift with 8+8 Shychro Shuttle Gear
- Number of Gears8 F + 2 R8 Forward + 8 Reverse
- Clutch TypeHeavy Duty Single Dry Plate TypeSOFTEK Clutch with IPTO Lever*
- Clutch Size280 mmNA
- Max Forward Speed2.19 - 27.78 KmphNA
- Max Reverse Speed2.74-10.77 KmphNA
PTO
- PTO HP16.3 kW35 HP
- PTO TypeN/AMultiSpeed PTO & Reverse PTO with Independent PTO Clutch Lever
- PTO Speed21 Spline 1650 r/min for rated engine speed at 1000 r/min, 6 Spline 540 r/min (optional)NA
Dimensions & Weight
- Length3320 mm3590 mm
- Width1675 mm1790 mm
- Height2270 mm2260 mm
- Wheel Base1935 mm1990 mm
- Weight1750 Kg1715 Kg
- Ground Clearance375 mm390 mm
- Turning RadiusNANA
Hydraulics & Steering
- Lifting Capacity1000 kg1800 kg, HP Hydraulics* with Lift-O-Matic
- Hydraulic ControlLive Hydraulic- Position control, automatic draft control, mix control and hydraulic lift pumpNA
- SteeringHeavy duty single drop arm steering, Power steering (optional)Mechanical/Power Steering
- BrakesSelf energizing Water sealed disk brakes and parking brakesOil Immersed Multi Disc Brake
- 3-Point Linkage3 point linkage suitable for Cat- I & II type implements3-Point Linkage
Other Specifications
- Wheel Drive2WD2WD
- Tyre Size6x16 (Front) and 12.4x28/13.60x28 (optional) (Rear)6x16 (Front) and 13.6x28 (Rear)
- Price Range454688-473438576563-576563
- Warranty2 Years / 2000 Hours6 Years T-warranty
- SeriesXM SeriesTX Series
