Swaraj 724 XM vs Same deutz fahr Agrolux 80 4WD
Swaraj 724 XM HP25-30
Cylinder2
VS

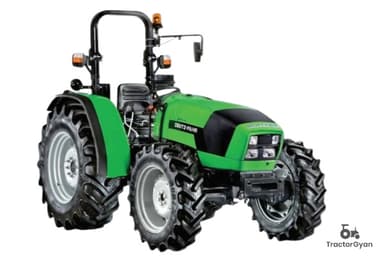

Same deutz fahr Agrolux 80 4WD HP80
Cylinder4
VS
Hide Common Features
Specification
Swaraj 724 XM
Same deutz fahr Agrolux 80 4WD
Engine
- Engine NameRV-2 XM + 3A, 4 Stroke, Direct injectionNA
- HP25-3080
- Displacement1824 cc4000 CC
- Cylinder24
- Rated RPM18002430
- Cooling SystemWater Cooled with no loss tankLiquid Cooling
- Fuel Tank CapacityNA90 Lit
- Air Filter3 - Stage Oil Bath TypeDry Type
Transmission
- Transmission TypeNASynchronized
- Number of Gears8 F + 2 R12 Forward + 12 Reverse / 15 Forward + 15 Reverse
- Clutch TypeHeavy Duty Single Dry Plate TypeHydrostatic clutch, Single
- Clutch Size280 mmNA
- Max Forward Speed2.19 - 27.78 Kmph40 kmph
- Max Reverse Speed2.74-10.77 KmphNA
PTO
- PTO HP16.3 kW68
- PTO TypeN/ADual PTO
- PTO Speed21 Spline 1650 r/min for rated engine speed at 1000 r/min, 6 Spline 540 r/min (optional)540/750/1000
Dimensions & Weight
- Length3320 mm4065 MM
- Width1675 mm1950-2200 MM
- Height2270 mmNA
- Wheel Base1935 mm2350 MM
- Weight1750 Kg3000 KG
- Ground Clearance375 mm450 MM
- Turning RadiusNA3700 MM
Hydraulics & Steering
- Lifting Capacity1000 kg4200 Kg
- Hydraulic ControlLive Hydraulic- Position control, automatic draft control, mix control and hydraulic lift pumpAutomatic depth and draft control
- SteeringHeavy duty single drop arm steering, Power steering (optional)Hydrostatic /Power Steering
- BrakesSelf energizing Water sealed disk brakes and parking brakesOil-immersed disc brakes
- 3-Point Linkage3 point linkage suitable for Cat- I & II type implementsNA
Other Specifications
- Wheel Drive2WD4WD
- Tyre Size6x16 (Front) and 12.4x28/13.60x28 (optional) (Rear)7.50 x 16/11.2 x 24, 16.9 x 30
- Price Range454688-473438899063-1124063
- Warranty2 Years / 2000 Hours2000 Hour / 2 Year
- SeriesXM SeriesAgrolux Series
