Swaraj 735 FE vs Swaraj 744 FE
Share
Swaraj 735 FE HP31-40
Cylinder3
VS

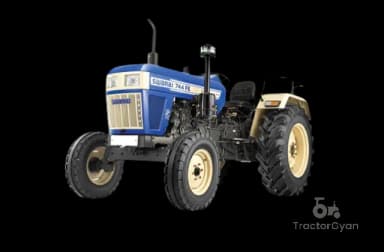

Swaraj 744 FE HP46-50
Cylinder3
VS
Hide Common Features
Specification
Swaraj 735 FE
Swaraj 744 FE
Engine
- Engine NameRV3XTRB30TR1
- HP31-4046-50
- Displacement2734 cc3307
- Cylinder33
- Rated RPM18002000
- Cooling SystemWater CooledNA
- Fuel Tank CapacityNA56 L
- Air FilterNA3 Stage wet Air Cleaner
Transmission
- Transmission TypeSliding Mesh/ Partial constant mesh (Center Shift / Shide Shift)Sliding Mesh/Partial Constant Mesh (Center Shift/Side Shift)
- Number of Gears8 F + 2 R8 F + 2 R / 12F + 3 R
- Clutch TypeSingle Clutch / Dual ClutchSingle Clutch /Dual Clutch /IPTO
- Clutch SizeNANA
- Max Forward SpeedNA2.79 - 30.90 kmph
- Max Reverse SpeedNA3.32 - 11.44 kmph
PTO
- PTO HP25.73 kW30.1 kW
- PTO TypeNA4 multi-speed forward and 1 reverse speed (optional)
- PTO Speed540540
Dimensions & Weight
- Length3450 mm3455 mm
- Width1780 mm1830 mm
- HeightNA2250 mm
- Wheel Base2090 mm2095 mm
- Weight1830 kg2060 Kg
- Ground ClearanceNA435 mm
- Turning RadiusNANA
Hydraulics & Steering
- Lifting Capacity1650 kg2000 Kg
- Hydraulic ControlDCV (optional)DCV - Optional
- SteeringPower / Mechanical*Power/ Mechanical Steering
- BrakesOil Immersed BrakesOil Immersed Brakes
- 3-Point Linkage3 point linkage3 Point Linkage
Other Specifications
- Wheel Drive2WD2WD
- Tyre Size6.0x16 (Front) and 13.6x28 (Rear)6x16 (Front) and 13.6x28 (Rear) / 7.50x16 (Front) and 14.9x28 (Rear)
- Price Range557813-576563646875-693750
- Warranty6 Years6 Year
- SeriesFE SeriesFE Series
