Swaraj 855 FE vs Indo farm 3075 DI 4WD
Share
Swaraj 855 FE HP46-50
Cylinder3
VS

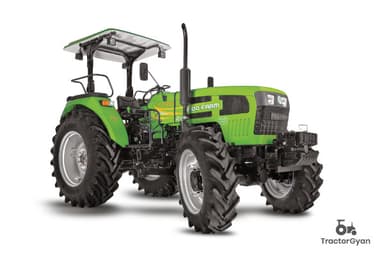

Indo farm 3075 DI 4WD HP75 HP Cat.
Cylinder4
VS
Hide Common Features
Specification
Swaraj 855 FE
Indo farm 3075 DI 4WD
Engine
- Engine NameRB33TR1Diesel, Four Stroke Direct Injection
- HP46-5075 HP Cat.
- Displacement3478 cc4088 cc
- Cylinder34
- Rated RPM20002200 RPM
- Cooling SystemWater CooledWater Cooled
- Fuel Tank Capacity62 L60 L
- Air Filter3 Stage wet Air CleanerDry Type
Transmission
- Transmission TypeSliding mesh / Partial Constant Mesh (Center Shift/Side Shift)Constant Mesh, Side Shift Gears
- Number of Gears8 F + 2 R / 12 F + 3 R16 Forward + 4 Reverse / 8 Forward + 2 Reverse
- Clutch TypeSingle Clutch/ Dual Clutch /IPTODual Clutch
- Clutch SizeNANA
- Max Forward SpeedNA2.92 -35.76 kmph
- Max Reverse SpeedNA3.88 - 15.55 kmph
PTO
- PTO HP33.8 kW63.75 HP
- PTO Type4 Multispeed Forward and 1 Reverse SpeedReverse PTO, 6 Splines
- PTO Speed540540 RPM
Dimensions & Weight
- Length3575 mm3990 MM
- Width1845 mm1980 mm
- Height2295 mm1740 MM
- Wheel Base2250 mmN/A
- Weight2220 kg2750 kg
- Ground Clearance437 mm390 mm
- Turning RadiusNA4.5 m
Hydraulics & Steering
- Lifting Capacity2000 kg2400 kg
- Hydraulic ControlDCV - OptionalAutomatic Depth & Draft Control
- SteeringPower/MechanicalHydrostatic Power Steering
- BrakesOil Immersed BrakesOil Immersed Brakes
- 3-Point Linkage3 Point Linkage3 Point Linkage
Other Specifications
- Wheel Drive2WD4WD
- Tyre Size6x16/7.50x16 (Front) and 14.9x28/16.9x28 (Rear)11.2x24 (Front) and 16.9x30 (Rear)
- Price Range768750 - 8343751017188-1607813
- Warranty6 YearsNA
- SeriesFE Series3 Series
