New holland TD 5.90 4WD vs VST VT180D JAI 2W 4W vs Sonalika Worldtrac 90 4WD
Share
New holland TD 5.90 4WD HP90
Cylinder4
VS

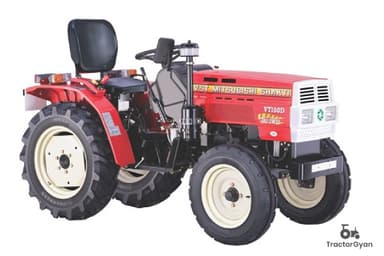

VST VT180D JAI 2W 4W HP18.5
Cylinder3
VS
AD
Sonalika Worldtrac 90 4WD HP90
Cylinder4
Hide Common Features
Specification
New holland TD 5.90 4WD
VST VT180D JAI 2W 4W
Sonalika Worldtrac 90 4WD
Engine
- Engine NameIVECOT-IIIA,Naturally Aspirated 4 Stroke EngineNA
- HP9018.590
- DisplacementNA979.5 cc4087 CC
- Cylinder434
- Rated RPMNA27002200
- Cooling SystemWater CooledWater CooledWater Cooled
- Fuel Tank Capacity110 Lit18 Lit77.5 Lit
- Air FilterDry TypeDry TypeDry type with air cleaner with precleaner & clogging system
Transmission
- Transmission TypeFully Syncromesh With Synchro ShuttleSliding Mesh, Centre ShiftSynchro Mesh
- Number of Gears20 Forward + 12 Reverse with Creeper6 F + 2 R / 8F +2 R12 Forward + 12 Reverse
- Clutch TypeDual ClutchSingle Dry friction PlateDoublel Clutch
- Clutch SizeNANANA
- Max Forward Speed29.09 Kmph13.98 kmph29.52 kmph
- Max Reverse SpeedNA6.93 kmphNA
PTO
- PTO HP76.515.8 HP (11.8 KW)76.5
- PTO TypeNAMulti SpeedMulti Speed Pto
- PTO Speed540 RPM/540 ENA540 / 540e
Dimensions & Weight
- LengthNA2565 mmNA
- WidthNA1065 mm1980 MM
- HeightNA1475 mmNA
- Wheel Base2402 MM1422 mm2360 mm
- Weight3770 KG645 Kg3155 KG
- Ground Clearance410 MM190 mm400 MM
- Turning RadiusNA2500 MMNA
Hydraulics & Steering
- Lifting Capacity3565 Kg500 Kg2500 Kg
- Hydraulic ControlAutomatic depth and draft controlAutomatic depth and draft controlADDC
- SteeringPower SteeringMechanical SteeringPower Steering
- BrakesHydraullically Assisted Multi Disc Oil Immersed BrakesWater Proof Internal Expanding ShoeOil immersed brakes
- 3-Point LinkageNANA3 pooint linkage
Other Specifications
- Wheel Drive4WD2WD4WD
- Tyre Size12.4 x 24,18.4 x 30F(5.00x12), R(8.00x18)9.5X16/18.5X30
- Price Range2437500-2531250276563-3187501302188-1607813
- Warranty6000 Hour or 6 Year2000 Hour / 2 Year5 years or 5000 hours
- SeriesNANANA
