Swaraj 735 XM vs Ace DI 6565 4X4 vs Sonalika DI 734
Share
Swaraj 735 XM HP35
Cylinder3
VS

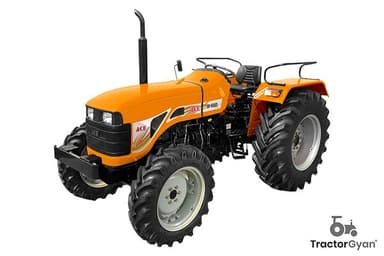

Ace DI 6565 4X4 HP61.2
Cylinder4
VS
AD
Sonalika DI 734 HP34
Cylinder3
Hide Common Features
Specification
Swaraj 735 XM
Ace DI 6565 4X4
Sonalika DI 734
Engine
- Engine NameRV-3 XM+ 3AA65NA
- HP3561.234
- Displacement2734 CC4088 CC2780 CC
- Cylinder343
- Rated RPM18002200 RPM1800
- Cooling SystemWater Cooled with no loss tankWater cooledWater Cooled
- Fuel Tank Capacity60 Lit65 L55 Ltr
- Air Filter3 stage air clining cyclonic pre cleaner with oil bowlDry TypeOil Bath Type With Pre Cleaner
Transmission
- Transmission TypeNANASliding Mesh
- Number of Gears8 Forward + 2 Reverse8 Forward + 2 Reverse8 Forward + 2 Reverse
- Clutch TypeDry Single Friction PlateDualSingle
- Clutch Size280 mm280 MMNA
- Max Forward Speed27.78 Kmph35.1 kmph34.42 Kmph
- Max Reverse Speed10.74 Kmph14.3 kmphNA
PTO
- PTO HP29.857NA
- PTO TypeMulti Speed PTO6 SPLINENA
- PTO Speed1000 RPM/540 RPM540540
Dimensions & Weight
- Length3470 MM3845 MMNA
- Width1695 mm1995 MMNA
- Height2255 MM2500 MMNA
- Wheel Base1950 MM2200 MM1970 mm
- Weight1895 KG2515 KgNA
- Ground Clearance395 mm385 mmNA
- Turning RadiusNA4.66 MNA
Hydraulics & Steering
- Lifting Capacity1000 Kg2000 Kg2000 Kg
- Hydraulic ControlNAADDCNA
- SteeringManual / Power SteeringPower steeringManual / Power Steering
- BrakesDry Disc Brakes / Oil Immersed BrakesOil immersed brakeDry Disc Brakes / Oil Immersed Brakes
- 3-Point Linkage3 pooint linkageNANA
Other Specifications
- Wheel Drive2WD4WD2WD
- Tyre Size6X16,12.4X28/6X16,13.6X28Front-9.5 x 24 12PR, Rear-16.9 x 28 12PR6x16 (Front), 13.6x28 (Rear)
- Price Range548438-604688937500-993750492188-527813
- Warranty6 YearsNA5 years or 5000 hours
- SeriesXM SeriesNANA
