Swaraj 855 FE vs Ace DI 550 NG 4WD
Share
Swaraj 855 FE HP46-50
Cylinder3
VS

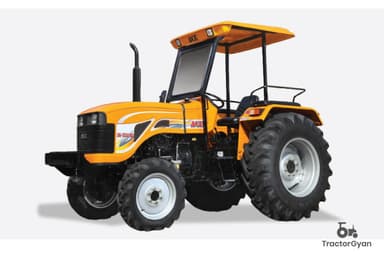

Ace DI 550 NG 4WD HP50
Cylinder3
VS
Hide Common Features
Specification
Swaraj 855 FE
Ace DI 550 NG 4WD
Engine
- Engine NameRB33TR1A50
- HP46-5050
- Displacement3478 cc3065 CC
- Cylinder33
- Rated RPM20002100
- Cooling SystemWater CooledWater Cooled
- Fuel Tank Capacity62 L57 Lit
- Air Filter3 Stage wet Air CleanerDry Air Cleaner
Transmission
- Transmission TypeSliding mesh / Partial Constant Mesh (Center Shift/Side Shift)Constant Mesh
- Number of Gears8 F + 2 R / 12 F + 3 R8 Forward + 2 Reverse
- Clutch TypeSingle Clutch/ Dual Clutch /IPTODual
- Clutch SizeNA280 MM
- Max Forward SpeedNA32.5 Kmph
- Max Reverse SpeedNA13.7 Kmph
PTO
- PTO HP33.8 kW42.5
- PTO Type4 Multispeed Forward and 1 Reverse Speed6 SPLINE / 10 SPLINE
- PTO Speed540540 RPM
Dimensions & Weight
- Length3575 mm3790 MM
- Width1845 mm1835 MM
- Height2295 mm2360 MM
- Wheel Base2250 mmNA
- Weight2220 kg2240 KG
- Ground Clearance437 mm370 MM
- Turning RadiusNA4450 MM
Hydraulics & Steering
- Lifting Capacity2000 kg1800 kg
- Hydraulic ControlDCV - OptionalAutomatic depth and draft control
- SteeringPower/MechanicalManual / Power Steering
- BrakesOil Immersed BrakesOil Immersed Brakes
- 3-Point Linkage3 Point LinkageNA
Other Specifications
- Wheel Drive2WD4WD
- Tyre Size6x16/7.50x16 (Front) and 14.9x28/16.9x28 (Rear)8X18,14.9X28
- Price Range768750 - 834375646875-759375
- Warranty6 YearsNA
- SeriesFE SeriesNA
