New holland 5630 Tx Plus 4WD (TREM IV)

New holland 5630 Tx Plus 4WD (TREM IV)

The New holland 5630 Tx Plus 4WD (TREM IV) is best known for its advanced technologies, modern features, multiple gear options, and ability to pair with a variety of farm implements. The New holland 5630 Tx Plus 4WD (TREM IV) has a 75 HP Cat. HP, 3-cylinder engine that can support continuous operations. The tractor model comes with 12F+ 3R UG / 12 F+3 R Creeper* gear options and a Double Clutch with Independent Clutch Lever clutch, making farming tasks easy. This tractor also has Oil Immersed Multi Disk Brakes brakes, Power Steering steering, 2000 kg with Assist Ram* with Sensomatic24 (24 sensing points) of lifting capacity.

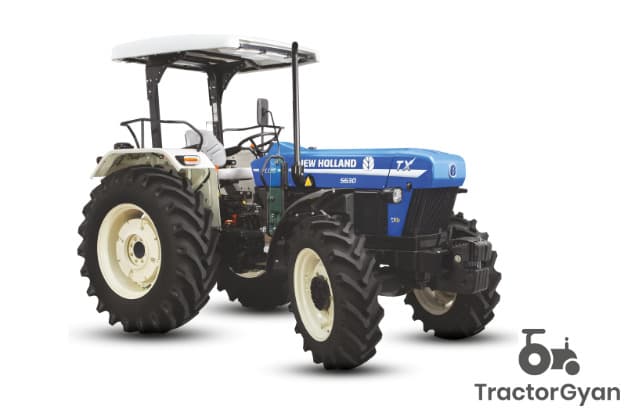

New holland 5630 Tx Plus 4WD (TREM IV) image (1)

4.8

(4 reviews)

HP75 HP Cat.

Cylinders3

Wheel Base2045 mm

Lifting Capacity2000 kg with Assist Ram* with Sensomatic24 (24 sensing points)

Warranty6 Years T-Warranty

New holland 5630 Tx Plus 4WD (TREM IV) Specifications

New holland 5630 Tx Plus 4WD (TREM IV) - Engine

New holland 5630 Tx Plus 4WD (TREM IV) - Transmission

New holland 5630 Tx Plus 4WD (TREM IV) - Power Take-off

New holland 5630 Tx Plus 4WD (TREM IV) - Brakes

New holland 5630 Tx Plus 4WD (TREM IV) - Steering

New holland 5630 Tx Plus 4WD (TREM IV) - Fuel Tank

New holland 5630 Tx Plus 4WD (TREM IV) - Dimension & Weight

New holland 5630 Tx Plus 4WD (TREM IV) - Hydraulics

New holland 5630 Tx Plus 4WD (TREM IV) - Wheels & Tyres

New holland 5630 Tx Plus 4WD (TREM IV) - Additional Features & Comfort

New holland 5630 Tx Plus 4WD (TREM IV) Specifications
Specification	Value
Engine Name	FPT 12 Valve HPCR TREM Stage - IV Engine, 4 Stroke High Pressure Common Rail
Engine Mode	Power, Eco, Eco+
HP	75 HP Cat.
Power (kW)	55 kW
Cylinders	3
Engine Rated RPM	2300
Transmission Name	Partial Synchro mesh
Number of Gears	12F+ 3R UG / 12 F+3 R Creeper*
Clutch Type	Double Clutch with Independent Clutch Lever
PTO HP	69
PTO Type	540 + GSPTO/ RPTO (RPTO with UG Gear Box Only)
PTO Speed	540@1800 ERPM
Brakes	Oil Immersed Multi Disk Brakes
Steering	Power Steering
Steering Adjustment	No
Fuel Tank Capacity	70 L
Length	3780 mm
Height	2600 mm
Width	2000 mm
Wheel Base	2045 mm
Tractor Weight	3015 Kg
Ground Clearance	435 mm
Lifting Capacity	2000 kg with Assist Ram* with Sensomatic24 (24 sensing points)
Hydraulic Control	Lift-O-Matic Height Limiter with DRC & Isolator Valve
Tyre Size	12.4X24 (Front) and 18.4X30 (Rear)
Wheel Drive	4WD
Warranty	6 Years T-Warranty
Accessories	Tool, Top Link, Canopy, Hook, Bumpher, Drarbar
Battery	100 Ah
Alternator	55 Amp

New holland 5630 Tx Plus 4WD (TREM IV) EMI Calculator

Loan Amount

₹

|0|10L|20L|30L

Loan Tenure (Years)

|0|10|20|30

Rate of Interest

|0%|10%|20%|30%

Total EMI

₹0/-
Month

Principal – ₹5,00,000/-

Interest – ₹0/-

Monthly EMI:₹0

6 Monthly EMI:₹0

Total Interest:₹0

Total Amount:₹0

₹5,00,000Loan Amount

5 YrLoan Tenure

10%Rate of Interest

New holland 5630 Tx Plus 4WD (TREM IV) Overview

New Holland 5630 TX Plus 4WD is a 75 HP tractor. That is capable of handling multiple types of farming and commercial activities. It has an FPT-type 4-cylinder engine. This is a 4WD tractor equipped with advanced features such as a double clutch, power steering, and a 70-litre fuel tank.

The transmission type used in the New Holland 5630 TX Plus 4WD tractor is partial synchromesh, and the clutch system used here is Double Clutch with Independent Clutch Lever. Because of these advanced features, this tractor can handle any operation with ease.
