Massey ferguson 9563 Smart 2WD (Trem-IV)

Massey ferguson 9563 Smart 2WD (Trem-IV)

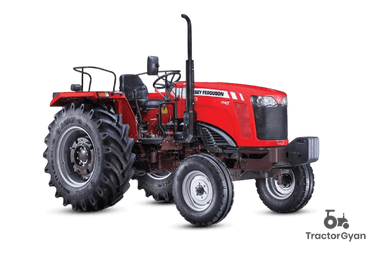

The Massey ferguson 9563 Smart 2WD (Trem-IV) is best known for its advanced technologies, modern features, multiple gear options, and ability to pair with a variety of farm implements. The Massey ferguson 9563 Smart 2WD (Trem-IV) has a 63 HP, 3-cylinder engine that can support continuous operations. The tractor model comes with 12 F + 4 R / 8 F + 8 R - QUADRA PTO gear options and a Dual Clutch clutch, making farming tasks easy. This tractor also has Oil Immersed Brakes brakes, Power Steering steering, 2500 kg of lifting capacity.

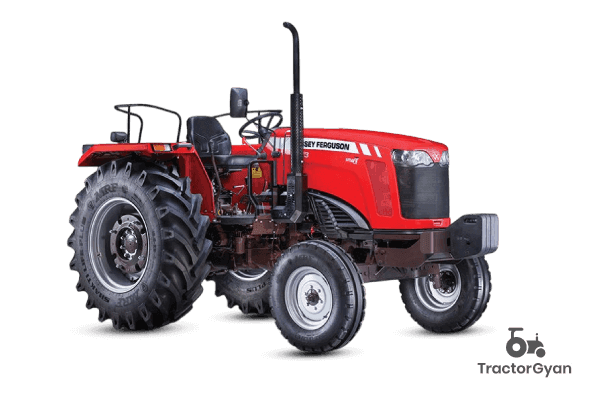

Massey ferguson 9563 Smart 2WD (Trem-IV) image (1)

(2 reviews)

HP63

Cylinders3

Wheel Base1980 mm

Lifting Capacity2500 kg

Massey ferguson 9563 Smart 2WD (Trem-IV) Specifications

Massey ferguson 9563 Smart 2WD (Trem-IV) - Engine

Massey ferguson 9563 Smart 2WD (Trem-IV) - Transmission

Massey ferguson 9563 Smart 2WD (Trem-IV) - Power Take-off

Massey ferguson 9563 Smart 2WD (Trem-IV) - Brakes

Massey ferguson 9563 Smart 2WD (Trem-IV) - Steering

Massey ferguson 9563 Smart 2WD (Trem-IV) - Fuel Tank

Massey ferguson 9563 Smart 2WD (Trem-IV) - Dimension & Weight

Massey ferguson 9563 Smart 2WD (Trem-IV) - Hydraulics

Massey ferguson 9563 Smart 2WD (Trem-IV) - Wheels & Tyres

Massey ferguson 9563 Smart 2WD (Trem-IV) - Additional Features & Comfort

Massey ferguson 9563 Smart 2WD (Trem-IV) Specifications
Specification	Value
HP	63
Power (kW)	44.1 KW
Cylinders	3
Displacement	2590 cc
Engine Rated RPM	2200
Transmission Name	Partial Synchro Mesh (12+4) - QUADRA PTO) / Comfimesh (8+8) - QUADRA PTO)
Number of Gears	12 F + 4 R / 8 F + 8 R - QUADRA PTO
Maximum Forward Speed	31.3 Kmph
Clutch Type	Dual Clutch
PTO Type	Quadra PTO, Six-splined shaft
PTO Speed	540 RPM @ 1789 ERPM
Brakes	Oil Immersed Brakes
Steering	Power Steering
Fuel Tank Capacity	65 L
Pump Flow	Common Rail Injection System
Length	3439 mm (12+4) - QUADRA PTO) / 3917 mm (8+8) - QUADRA PTO
Width	1877 mm
Wheel Base	1980 mm
Tractor Weight	2430 (12+4) - QUADRA PTO) / 2560 Kg (8+8) - QUADRA PTO
Lifting Capacity	2500 kg
Tyre Size	7.5x16 (Front) and 16.9x28 (Rear)
Wheel Drive	2WD

Massey ferguson 9563 Smart 2WD (Trem-IV) EMI Calculator

Loan Amount

₹

|0|10L|20L|30L

Loan Tenure (Years)

|0|10|20|30

Rate of Interest

|0%|10%|20%|30%

Total EMI

₹0/-
Month

Principal – ₹5,00,000/-

Interest – ₹0/-

Monthly EMI:₹0

6 Monthly EMI:₹0

Total Interest:₹0

Total Amount:₹0

₹5,00,000Loan Amount

5 YrLoan Tenure

10%Rate of Interest

Massey ferguson 9563 Smart 2WD (Trem-IV) Overview

The Massey ferguson 9563 Smart 2WD (Trem-IV) is one of the best tractor models in India as it's built for the kind of everyday farm work most people actually do. Massey ferguson 9563 Smart 2WD (Trem-IV) is a 63 HP tractor, which makes it a practical fit for mixed operations, cultivation, sowing support, rotavator work, and trolley loads. It is a highly versatile tractor model that works well with widely used implements and is also perfect for commercial and construction work.
