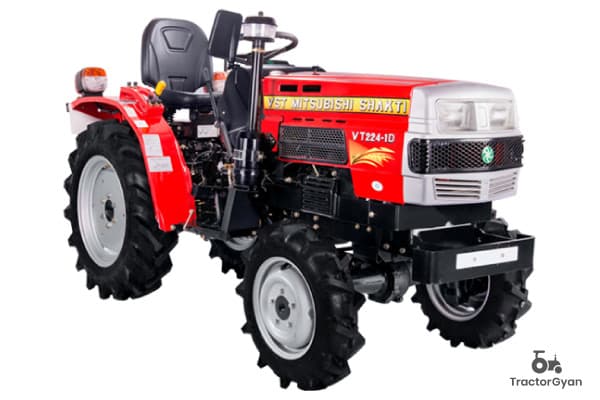

VST VT 224 1D

The VST VT 224 1D is best known for its advanced technologies, modern features, multiple gear options, and ability to pair with a variety of farm implements. The VST VT 224 1D has a 22 HP, 3-cylinder engine that can support continuous operations. The tractor model comes with 6 Forward + 2 Reverse gear options and a Single Dry Type clutch, making farming tasks easy. This tractor also has Water Proof Internal Expanding Shoe brakes, Mechanical Steering steering, 500 Kg of lifting capacity.

(1 reviews)

HP22

Cylinders3

Cooling SystemWater Cooled

Wheel Base1420 mm

Lifting Capacity500 Kg

Warranty2000 Hour / 2 Year

VST VT 224 1D Specifications

VST VT 224 1D - Engine

VST VT 224 1D - Transmission

VST VT 224 1D - Power Take-off

VST VT 224 1D - Brakes

VST VT 224 1D - Steering

VST VT 224 1D - Fuel Tank

VST VT 224 1D - Dimension & Weight

VST VT 224 1D - Hydraulics

VST VT 224 1D - Wheels & Tyres

VST VT 224 1D - Additional Features & Comfort

VST VT 224 1D Specifications
Specification	Value
Engine Name	V3D
HP	22
Cylinders	3
Displacement	980 CC
Engine Rated RPM	3000
Cooling System	Water Cooled
Specific Fuel Consumption	225 GM/HP-HR
Torque	5.50KG-M/2200 RPM
Transmission Name	Constant Mesh
Number of Gears	6 Forward + 2 Reverse
Maximum Forward Speed	20.23 Kmph
Maximum Reverse Speed	7.72 Kmph
Clutch Type	Single Dry Type
PTO HP	18
PTO Type	Multi Speed PTO
PTO Speed	540 & 796@2340 RPM
Brakes	Water Proof Internal Expanding Shoe
Steering	Mechanical Steering
Turning Radius	2700 mm
Fuel Tank Capacity	18 L
Length	2540 mm
Height	1250 mm
Width	1085 mm
Wheel Base	1420 mm
Tractor Weight	740 Kg
Ground Clearance	190 mm
Lifting Capacity	500 Kg
Hydraulic Control	Automatic depth and draft control
Tyre Size	F(5.00X12), R(8.3 X 20)
Wheel Drive	4WD
Warranty	2000 Hour / 2 Year
Accessories	TOOLS, TOPLINK, Ballast Weight
Battery	12 V 35 Ah
Alternator	12 V 40 A

VST VT 224 1D EMI Calculator

Loan Amount

₹

|0|10L|20L|30L

Loan Tenure (Years)

|0|10|20|30

Rate of Interest

|0%|10%|20%|30%

Total EMI

₹0/-
Month

Principal – ₹5,00,000/-

Interest – ₹0/-

Monthly EMI:₹0

6 Monthly EMI:₹0

Total Interest:₹0

Total Amount:₹0

₹5,00,000Loan Amount

5 YrLoan Tenure

10%Rate of Interest

VST VT 224 1D Overview

The VST VT 224 1D is one of the best tractor models in India as it's built for the kind of everyday farm work most people actually do. VST VT 224 1D is a 22 HP tractor, which makes it a practical fit for mixed operations, cultivation, sowing support, rotavator work, and trolley loads. It is a highly versatile tractor model that works well with widely used implements and is also perfect for commercial and construction work.
