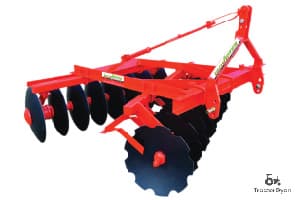

Landforce Disc Harrow Mounted-Std Duty Technical Specifications
Landforce Disc Harrow Mounted-Std Duty Features
Brand
Model
Disc Harrow Mounted-Std Duty
Category
Working Width
141-272 CM
No. of Discs
12 to 24
Type
No. of Blades
12 - 24
Weight
395-740 Kg
Suitable HP
30-90 HP
Gang Bolt
28 mm
Type of Disc
Notched Front Disc And Plain Rear Discs
Tillage Width
1415-2720 mm
Distance Between Discs
228 mm
Bearing Hub
4 to 8
Price
Data Last Updated On: 31 Jul 2026
About Landforce Disc Harrow Mounted-Std Duty
Landforce Disc Harrow Mounted-Std Duty Models
| Specification | LFDHSM12 | LFDHSM14 | LFDHSM16 | LFDHSM18 | LFDHSM20 | LFDHSM22 | LFDHSM24 |
|---|---|---|---|---|---|---|---|
| Working Width | 1415 mm | 1640 mm | 1850 mm | 2070 mm | 2285 mm | 2500 mm | 2720 mm |
| Weight | 410 kg | 450 kg | 530 kg | 600 kg | 645 kg | 710 kg | 750 kg |
| No. of Disc | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Type of Disc | Boron Steel, Front notched & rear plain discs | Boron Steel, Front notched & rear plain discs | Boron Steel, Front notched & rear plain discs | Boron Steel, Front notched & rear plain discs | Boron Steel, Front notched & rear plain discs | Boron Steel, Front notched & rear plain discs | Boron Steel, Front notched & rear plain discs |
| Distance Between Discs | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 4 | 4 | 8 | 8 | 8 | 8 | 8 |
| Tractor HP | 30-40 HP | 40-50 HP | 50-60 HP | 60-70 HP | 70-80 HP | 80-90 HP | 90-100 HP |
Disc Harrow Mounted-Std Duty - LFDHSM12
Working Width
1415 mm
Weight
410 kg
No. of Disc
12
Type of Disc
Boron Steel, Front notched & rear plain discs
Distance Between Discs
228 mm
Bearing Hub
4
Tractor HP
30-40 HP
Disc Harrow Mounted-Std Duty - LFDHSM14
Working Width
1640 mm
Weight
450 kg
No. of Disc
14
Type of Disc
Boron Steel, Front notched & rear plain discs
Distance Between Discs
228 mm
Bearing Hub
4
Tractor HP
40-50 HP
Disc Harrow Mounted-Std Duty - LFDHSM16
Working Width
1850 mm
Weight
530 kg
No. of Disc
16
Type of Disc
Boron Steel, Front notched & rear plain discs
Distance Between Discs
228 mm
Bearing Hub
8
Tractor HP
50-60 HP
Disc Harrow Mounted-Std Duty - LFDHSM18
Working Width
2070 mm
Weight
600 kg
No. of Disc
18
Type of Disc
Boron Steel, Front notched & rear plain discs
Distance Between Discs
228 mm
Bearing Hub
8
Tractor HP
60-70 HP
Disc Harrow Mounted-Std Duty - LFDHSM20
Working Width
2285 mm
Weight
645 kg
No. of Disc
20
Type of Disc
Boron Steel, Front notched & rear plain discs
Distance Between Discs
228 mm
Bearing Hub
8
Tractor HP
70-80 HP
Disc Harrow Mounted-Std Duty - LFDHSM22
Working Width
2500 mm
Weight
710 kg
No. of Disc
22
Type of Disc
Boron Steel, Front notched & rear plain discs
Distance Between Discs
228 mm
Bearing Hub
8
Tractor HP
80-90 HP
Disc Harrow Mounted-Std Duty - LFDHSM24
Working Width
2720 mm
Weight
750 kg
No. of Disc
24
Type of Disc
Boron Steel, Front notched & rear plain discs
Distance Between Discs
228 mm
Bearing Hub
8
Tractor HP
90-100 HP
