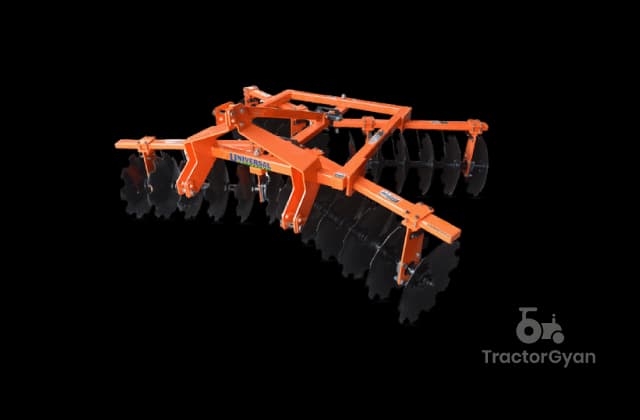

Universal Mounted Tandem Disc Harrow Technical Specifications
Universal Mounted Tandem Disc Harrow Features
Brand
Model
Mounted Tandem Disc Harrow
Category
No. of Discs
12 to 24
Type
Weight
300-640 Kg
Suitable HP
25-90 HP
Gang Bolt
Solild Square 25-28 (Rod)
Type of Disc
Boron Steel/High Carbon Steel and Plain /Notched Disc(optional)
Disc Diameter
475x3T-560x4 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
1415-2842 mm
Price
Data Last Updated On: 27 Jul 2026
About Universal Mounted Tandem Disc Harrow
Universal Mounted Tandem Disc Harrow Models
| Specification | BETDHH-20 | BETDHH-24 | BETDHM-12 | BETDHM-16 | BETDHM-20 |
|---|---|---|---|---|---|
| Weight | 580 kg | 640 kg | 300 kg | 385 kg | 440 kg |
| gang bolt | Solid Square 28 (Rod) | Solid Square 28 (Rod) | Solid Square 25 (Rod) | Solid Square 25 (Rod) | Solid Square 25 (Rod) |
| No. of Disc | 20 | 24 | 12 | 16 | 20 |
| Type of Disc | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) |
| Disc Diameter | 508-558 mm | 508-558 mm | 457-508 mm | 457-508 mm | 457-508 mm |
| Distance Between Discs | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 8 (UC -211) | 8 (UC -211) | 8 (UC -210) | 8 (UC -210) | 8 (UC -210) |
| Width of Cut | 2402 mm | 2842 mm | 1415 mm | 1848 mm | 2280 mm |
| Tractor HP | 55-65 HP | 75-90 HP | 25-30 HP | 35-40 HP | 45-50 HP |
Mounted Tandem Disc Harrow - BETDHH-20
Weight
580 kg
gang bolt
Solid Square 28 (Rod)
No. of Disc
20
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
508-558 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UC -211)
Width of Cut
2402 mm
Tractor HP
55-65 HP
Mounted Tandem Disc Harrow - BETDHH-24
Weight
640 kg
gang bolt
Solid Square 28 (Rod)
No. of Disc
24
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
508-558 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UC -211)
Width of Cut
2842 mm
Tractor HP
75-90 HP
Mounted Tandem Disc Harrow - BETDHM-12
Weight
300 kg
gang bolt
Solid Square 25 (Rod)
No. of Disc
12
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
457-508 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UC -210)
Width of Cut
1415 mm
Tractor HP
25-30 HP
Mounted Tandem Disc Harrow - BETDHM-16
Weight
385 kg
gang bolt
Solid Square 25 (Rod)
No. of Disc
16
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
457-508 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UC -210)
Width of Cut
1848 mm
Tractor HP
35-40 HP
Mounted Tandem Disc Harrow - BETDHM-20
Weight
440 kg
gang bolt
Solid Square 25 (Rod)
No. of Disc
20
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
457-508 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UC -210)
Width of Cut
2280 mm
Tractor HP
45-50 HP
