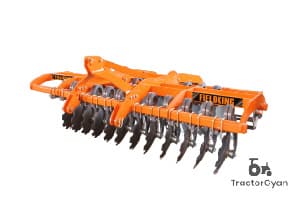

Fieldking High Speed Disc Harrow Pro Technical Specifications
Fieldking High Speed Disc Harrow Pro Features
Brand
Model
High Speed Disc Harrow Pro
Category
No. of Discs
12-28
Tractor Power (HP)
45-150 HP
Type
Power
45-150 HP
No. of Blades
12 - 28
Weight
808-2361 kg
Suitable HP
45-150 HP
Types of Bear
Agri Hub
Type of Disc
Notched
Disc Diameter
560 x 4.5T-610 x 4.5T mm
Tillage Width
1498-3500 mm
Distance Between Discs
250 mm
Bearing Hub
12-28
Weight With Dead Weight
1634-2809 Kg
Price
Data Last Updated On: 15 Aug 2026
About Fieldking High Speed Disc Harrow Pro
Fieldking High Speed Disc Harrow Pro Models
| Specification | FKMDHDCT-22-12 | FKMDHDCT-22-16 | FKMDHDCT-22-20 | FKMDHDCT-22-24 | FKMDHDCT-22-28 |
|---|---|---|---|---|---|
| Weight | 808 kg | 1125 kg | 1442 kg | 1759-3878 kg | 2076-4577 kg |
| No. of Disc | 12 | 16 | 20 | 24 | 28 |
| Type of Disc | Notched | Notched | Notched | Notched | Notched |
| Disc Diameter | 560 mm | 560 mm | 560 mm | 560-610 mm | 560-610 mm |
| Tillage Width | 1498 mm | 2000 mm | 2500 mm | 3000 mm | 3500 mm |
| Distance Between Discs | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
| Bearing Hub | 12 | 14 | 16 | 24 | 28 |
| weight with dead weight | 808 kg | 1125 kg | 1634 kg | 1951-4301 kg | 2524-5564 kg |
| Tractor HP | 45-55 HP | 55-65 HP | 65-90 HP | 90-120 HP | 125-150 HP |
High Speed Disc Harrow Pro - FKMDHDCT-22-12
Weight
808 kg
No. of Disc
12
Type of Disc
Notched
Disc Diameter
560 mm
Tillage Width
1498 mm
Distance Between Discs
250 mm
Bearing Hub
12
weight with dead weight
808 kg
Tractor HP
45-55 HP
High Speed Disc Harrow Pro - FKMDHDCT-22-16
Weight
1125 kg
No. of Disc
16
Type of Disc
Notched
Disc Diameter
560 mm
Tillage Width
2000 mm
Distance Between Discs
250 mm
Bearing Hub
14
weight with dead weight
1125 kg
Tractor HP
55-65 HP
High Speed Disc Harrow Pro - FKMDHDCT-22-20
Weight
1442 kg
No. of Disc
20
Type of Disc
Notched
Disc Diameter
560 mm
Tillage Width
2500 mm
Distance Between Discs
250 mm
Bearing Hub
16
weight with dead weight
1634 kg
Tractor HP
65-90 HP
High Speed Disc Harrow Pro - FKMDHDCT-22-24
Weight
1759-3878 kg
No. of Disc
24
Type of Disc
Notched
Disc Diameter
560-610 mm
Tillage Width
3000 mm
Distance Between Discs
250 mm
Bearing Hub
24
weight with dead weight
1951-4301 kg
Tractor HP
90-120 HP
High Speed Disc Harrow Pro - FKMDHDCT-22-28
Weight
2076-4577 kg
No. of Disc
28
Type of Disc
Notched
Disc Diameter
560-610 mm
Tillage Width
3500 mm
Distance Between Discs
250 mm
Bearing Hub
28
weight with dead weight
2524-5564 kg
Tractor HP
125-150 HP
