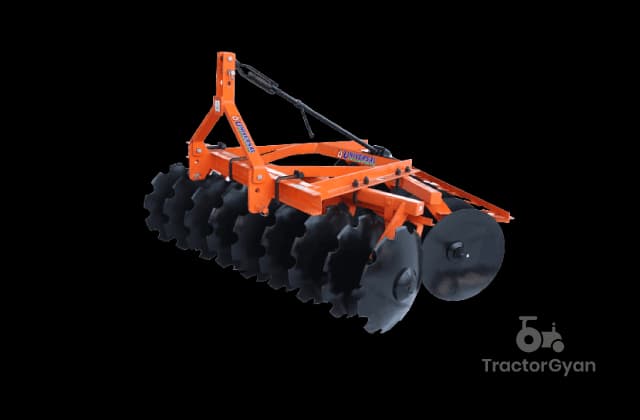

Universal Mounted Offset Disc Harrow Technical Specifications
Universal Mounted Offset Disc Harrow Features
Brand
Model
Mounted Offset Disc Harrow
Category
No. of Discs
12 to 24
Type
Suitable HP
30-100 HP
Gang Bolt
Solild Square 32 (Rod)
Type of Disc
Boron Steel/High Carbon Steel and Plain /Notched Disc(optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
4 to 8
Width of Cut
1420-2718 mm
Price
Data Last Updated On: 27 Jul 2026
About Universal Mounted Offset Disc Harrow
Universal Mounted Offset Disc Harrow Models
| Specification | BEMODH-12 | BEMODH-14 | BEMODH-16 | BEMODH-18 | BEMODH-20 | BEMODH-22 | BEMODH-24 |
|---|---|---|---|---|---|---|---|
| Weight | 390 kg | 450 kg | 520 kg | 585 kg | 640 kg | 700 kg | 750 kg |
| gang bolt | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) |
| No. of Disc | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Type of Disc | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) |
| Disc Diameter | 460-560 mm | 460-560 mm | 460-560 mm | 460-560 mm | 460-560 mm | 460-560 mm | 460-560 mm |
| Distance Between Discs | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 4 | 6 | 8 | 8 | 8 | 8 | 8 |
| Width of Cut | 1420 mm | 1635 mm | 1852 mm | 2068 mm | 2285 mm | 2502 mm | 2718 mm |
| Tractor HP | 30-40 HP | 40-50 HP | 50-60 HP | 60-70 HP | 70-80 HP | 80-90 HP | 90-100 HP |
Mounted Offset Disc Harrow - BEMODH-12
Weight
390 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
12
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
4
Width of Cut
1420 mm
Tractor HP
30-40 HP
Mounted Offset Disc Harrow - BEMODH-14
Weight
450 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
14
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
6
Width of Cut
1635 mm
Tractor HP
40-50 HP
Mounted Offset Disc Harrow - BEMODH-16
Weight
520 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
16
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
1852 mm
Tractor HP
50-60 HP
Mounted Offset Disc Harrow - BEMODH-18
Weight
585 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
18
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2068 mm
Tractor HP
60-70 HP
Mounted Offset Disc Harrow - BEMODH-20
Weight
640 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
20
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2285 mm
Tractor HP
70-80 HP
Mounted Offset Disc Harrow - BEMODH-22
Weight
700 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
22
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2502 mm
Tractor HP
80-90 HP
Mounted Offset Disc Harrow - BEMODH-24
Weight
750 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
24
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
460-560 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2718 mm
Tractor HP
90-100 HP
