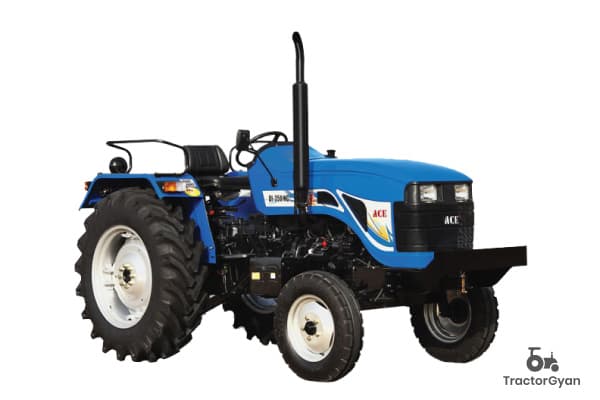

Ace DI 350 NG

The Ace DI 350 NG is best known for its advanced technologies, modern features, multiple gear options, and ability to pair with a variety of farm implements. The Ace DI 350 NG has a 40 HP, 3-cylinder engine that can support continuous operations. The tractor model comes with 8 Forward + 2 Reverse gear options and a Dry Type Single / Dual clutch, making farming tasks easy. This tractor also has Dry Disc Brakes / Oil Immersed Brakes brakes, Manual / Power Steering steering, 1200 Kg of lifting capacity.

(1 reviews)

HP40

Cylinders3

Cooling SystemWater Cooled

Wheel Base1960 MM

Lifting Capacity1200 Kg

Ace DI 350 NG Specifications

Ace DI 350 NG - Engine

Ace DI 350 NG - Transmission

Ace DI 350 NG - Power Take-off

Ace DI 350 NG - Brakes

Ace DI 350 NG - Steering

Ace DI 350 NG - Fuel Tank

Ace DI 350 NG - Dimension & Weight

Ace DI 350 NG - Hydraulics

Ace DI 350 NG - Wheels & Tyres

Ace DI 350 NG - Additional Features & Comfort

Ace DI 350 NG Specifications
Specification	Value
Engine Name	A40
HP	40
Cylinders	3
Displacement	2858 CC
Engine Rated RPM	1800
Cooling System	Water Cooled
Transmission Name	DRY TYPE SINGLE / DUAL(OPTIONAL)
Number of Gears	8 Forward + 2 Reverse
Maximum Forward Speed	28.72 Kmph
Maximum Reverse Speed	11.69 Kmph
Clutch Size	280 MM
Clutch Type	Dry Type Single / Dual
PTO HP	34
PTO Type	6 SPLINE
PTO Speed	540 RPM & 1000 RPM
Brakes	Dry Disc Brakes / Oil Immersed Brakes
Steering	Manual / Power Steering
Turning Radius	3020 MM
Fuel Tank Capacity	55 Lit
Length	3660 MM
Height	2300 MM
Width	1740 MM
Wheel Base	1960 MM
Tractor Weight	1930 KG
Ground Clearance	420 MM
Lifting Capacity	1200 Kg
Hydraulic Control	Automatic depth and draft control
Tyre Size	6.00X16,13.6X28
Wheel Drive	2WD
Accessories	TOPLINK, TOOLS
Battery	12 V 75 AH
Alternator	12 V 42 A

Ace DI 350 NG EMI Calculator

Loan Amount

₹

|0|10L|20L|30L

Loan Tenure (Years)

|0|10|20|30

Rate of Interest

|0%|10%|20%|30%

Total EMI

₹0/-
Month

Principal – ₹5,00,000/-

Interest – ₹0/-

Monthly EMI:₹0

6 Monthly EMI:₹0

Total Interest:₹0

Total Amount:₹0

₹5,00,000Loan Amount

5 YrLoan Tenure

10%Rate of Interest

Ace DI 350 NG Overview

The Ace DI 350 NG is one of the best tractor models in India as it's built for the kind of everyday farm work most people actually do. Ace DI 350 NG is a 40 HP tractor, which makes it a practical fit for mixed operations, cultivation, sowing support, rotavator work, and trolley loads. It is a highly versatile tractor model that works well with widely used implements and is also perfect for commercial and construction work.
