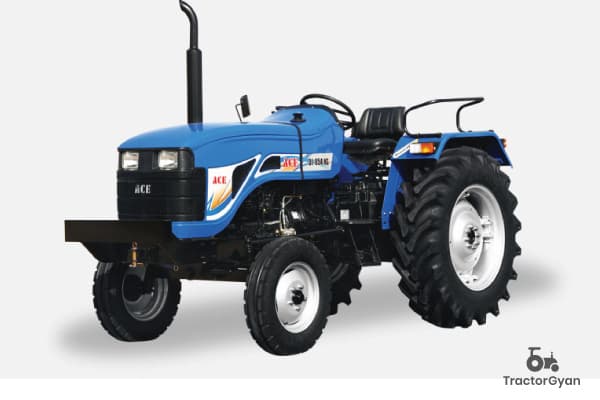

Ace DI 854 NG

The Ace DI 854 NG is best known for its advanced technologies, modern features, multiple gear options, and ability to pair with a variety of farm implements. The Ace DI 854 NG has a 32 HP, 3-cylinder engine that can support continuous operations. The tractor model comes with 8 Forward + 2 Reverse gear options and a Dry Type Single clutch, making farming tasks easy. This tractor also has Dry Disc Brakes / Oil Immersed Brakes brakes, Manual steering, 1200 Kg of lifting capacity.

(1 reviews)

HP32

Cylinders3

Cooling SystemWater Cooled

Wheel Base1960 MM

Lifting Capacity1200 Kg

Ace DI 854 NG Specifications

Ace DI 854 NG - Engine

Ace DI 854 NG - Transmission

Ace DI 854 NG - Power Take-off

Ace DI 854 NG - Brakes

Ace DI 854 NG - Steering

Ace DI 854 NG - Fuel Tank

Ace DI 854 NG - Dimension & Weight

Ace DI 854 NG - Hydraulics

Ace DI 854 NG - Wheels & Tyres

Ace DI 854 NG - Additional Features & Comfort

Ace DI 854 NG Specifications
Specification	Value
HP	32
Cylinders	3
Displacement	2858 CC
Engine Rated RPM	1800
Cooling System	Water Cooled
Transmission Name	A.C.E. Tractor Di-854 Ng
Number of Gears	8 Forward + 2 Reverse
Maximum Forward Speed	27.78 Kmph
Maximum Reverse Speed	11.31 Kmph
Clutch Size	280 MM
Clutch Type	Dry Type Single
PTO HP	27.2
PTO Type	6 SPLINE
PTO Speed	540 RPM
Brakes	Dry Disc Brakes / Oil Immersed Brakes
Steering	Manual
Turning Radius	3020 MM
Fuel Tank Capacity	55 Lit
Length	3650 MM
Height	2300 MM
Width	1700 MM
Wheel Base	1960 MM
Tractor Weight	1920 KG
Ground Clearance	395 mm
Lifting Capacity	1200 Kg
Hydraulic Control	SINGLE DROP ARM
Tyre Size	6.00X16,12.4X28
Wheel Drive	2WD
Battery	12 V 88 AH
Alternator	12 V 35 A

Ace DI 854 NG EMI Calculator

Loan Amount

₹

|0|10L|20L|30L

Loan Tenure (Years)

|0|10|20|30

Rate of Interest

|0%|10%|20%|30%

Total EMI

₹0/-
Month

Principal – ₹5,00,000/-

Interest – ₹0/-

Monthly EMI:₹0

6 Monthly EMI:₹0

Total Interest:₹0

Total Amount:₹0

₹5,00,000Loan Amount

5 YrLoan Tenure

10%Rate of Interest

Ace DI 854 NG Overview

The Ace DI 854 NG is one of the best tractor models in India as it's built for the kind of everyday farm work most people actually do. Ace DI 854 NG is a 32 HP tractor, which makes it a practical fit for mixed operations, cultivation, sowing support, rotavator work, and trolley loads. It is a highly versatile tractor model that works well with widely used implements and is also perfect for commercial and construction work.
