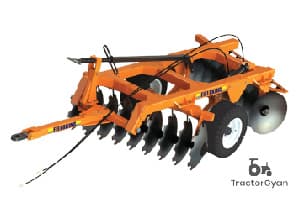

Fieldking Heavy Duty Hydraulic Harrow Technical Specifications
Fieldking Heavy Duty Hydraulic Harrow Features
Brand
Model
Heavy Duty Hydraulic Harrow
Category
No. of Discs
18-32
Tractor Power (HP)
50-190 HP
Type
Power
70-190 HP
No. of Blades
18 - 32
Weight
1535-4784 kg
Suitable HP
50-190 HP
Gang Bolt
40 mm (Solid Sq. Rod) with both side nut provision
Type of Disc
Notched Disc In Front Gang & Plain Disc In Rear Gang
Disc Diameter
610 x 4.5T-660 x 6T mm
Tillage Width
2100-3500 mm
Distance Between Discs
228 mm
Bearing Hub
6-8
Tyre Size
10.0/75-15.3 (8-16 PR), 13.0/55-16 (14 PR), 400/60-15.5 (18 PR)
Weight With Dead Weight
1535-2170 Kg
Price
Data Last Updated On: 6 Aug 2026
About Fieldking Heavy Duty Hydraulic Harrow
Fieldking Heavy Duty Hydraulic Harrow Models
| Specification | FKLDHH-26-18 | FKLDHH-26-20 | FKLDHH-26-22 | FKLDHH-26-24 | FKLDHH-26-28 | FKLDHH-26-32 |
|---|---|---|---|---|---|---|
| Weight | 1535 kg | 1630 kg | 1710 kg | 1845 kg | 2015 kg | 2170 kg |
| gang bolt | 40 / 1.6" (Solid Sq. Rod) with both side nut provision | 40 / 1.6" (Solid Sq. Rod) with both side nut provision | 40 / 1.6" (Solid Sq. Rod) with both side nut provision | 40 / 1.6" (Solid Sq. Rod) with both side nut provision | 40 / 1.6" (Solid Sq. Rod) with both side nut provision | 40 / 1.6" (Solid Sq. Rod) with both side nut provision |
| No. of Disc | 18 | 20 | 22 | 24 | 28 | 32 |
| Type of Disc | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang |
| Disc Diameter | 610-660 mm | 610-660 mm | 610-660 mm | 610-660 mm | 610-660 mm | 610-660 mm |
| Tillage Width | 2100 mm | 2300 mm | 2500 mm | 2700 mm | 3100 mm | 3500 mm |
| Distance Between Discs | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 6 | 8 | 8 | 8 | 8 | 8 |
| Tyre Size | 10.0/75-15.3 (8–16 PR) | 10.0/75-15.3 (8–16 PR) | 10.0/75-15.3 (8–16 PR) | 10.0/75-15.3 (8–16 PR), 13.0/55-16 (14 PR), 400/60-15.5 (18 PR) | 10.0/75-15.3 (8–16 PR), 13.0/55-16 (14 PR), 400/60-15.5 (18 PR) | 10.0/75-15.3 (8–16 PR), 13.0/55-16 (14 PR), 400/60-15.5 (18 PR) |
| Tractor HP | 50-70 HP | 50-70 HP | 50-70 HP | 115-135 HP | 140-165 HP | 170-190 HP |
Heavy Duty Hydraulic Harrow - FKLDHH-26-18
Weight
1535 kg
gang bolt
40 / 1.6" (Solid Sq. Rod) with both side nut provision
No. of Disc
18
Type of Disc
Notched Disc in Front Gang & Plain Disc in Rear Gang
Disc Diameter
610-660 mm
Tillage Width
2100 mm
Distance Between Discs
228 mm
Bearing Hub
6
Tyre Size
10.0/75-15.3 (8–16 PR)
Tractor HP
50-70 HP
Heavy Duty Hydraulic Harrow - FKLDHH-26-20
Weight
1630 kg
gang bolt
40 / 1.6" (Solid Sq. Rod) with both side nut provision
No. of Disc
20
Type of Disc
Notched Disc in Front Gang & Plain Disc in Rear Gang
Disc Diameter
610-660 mm
Tillage Width
2300 mm
Distance Between Discs
228 mm
Bearing Hub
8
Tyre Size
10.0/75-15.3 (8–16 PR)
Tractor HP
50-70 HP
Heavy Duty Hydraulic Harrow - FKLDHH-26-22
Weight
1710 kg
gang bolt
40 / 1.6" (Solid Sq. Rod) with both side nut provision
No. of Disc
22
Type of Disc
Notched Disc in Front Gang & Plain Disc in Rear Gang
Disc Diameter
610-660 mm
Tillage Width
2500 mm
Distance Between Discs
228 mm
Bearing Hub
8
Tyre Size
10.0/75-15.3 (8–16 PR)
Tractor HP
50-70 HP
Heavy Duty Hydraulic Harrow - FKLDHH-26-24
Weight
1845 kg
gang bolt
40 / 1.6" (Solid Sq. Rod) with both side nut provision
No. of Disc
24
Type of Disc
Notched Disc in Front Gang & Plain Disc in Rear Gang
Disc Diameter
610-660 mm
Tillage Width
2700 mm
Distance Between Discs
228 mm
Bearing Hub
8
Tyre Size
10.0/75-15.3 (8–16 PR), 13.0/55-16 (14 PR), 400/60-15.5 (18 PR)
Tractor HP
115-135 HP
Heavy Duty Hydraulic Harrow - FKLDHH-26-28
Weight
2015 kg
gang bolt
40 / 1.6" (Solid Sq. Rod) with both side nut provision
No. of Disc
28
Type of Disc
Notched Disc in Front Gang & Plain Disc in Rear Gang
Disc Diameter
610-660 mm
Tillage Width
3100 mm
Distance Between Discs
228 mm
Bearing Hub
8
Tyre Size
10.0/75-15.3 (8–16 PR), 13.0/55-16 (14 PR), 400/60-15.5 (18 PR)
Tractor HP
140-165 HP
Heavy Duty Hydraulic Harrow - FKLDHH-26-32
Weight
2170 kg
gang bolt
40 / 1.6" (Solid Sq. Rod) with both side nut provision
No. of Disc
32
Type of Disc
Notched Disc in Front Gang & Plain Disc in Rear Gang
Disc Diameter
610-660 mm
Tillage Width
3500 mm
Distance Between Discs
228 mm
Bearing Hub
8
Tyre Size
10.0/75-15.3 (8–16 PR), 13.0/55-16 (14 PR), 400/60-15.5 (18 PR)
Tractor HP
170-190 HP
