Landforce Disc Harrow Tandem Technical Specifications
Landforce Disc Harrow Tandem Features
Brand
Model
Disc Harrow Tandem
Category
Tractor Power (HP)
45-60 HP
Type
Weight
510-585 kg
Suitable HP
45-60 HP
Price
Data Last Updated On: 5 Aug 2026

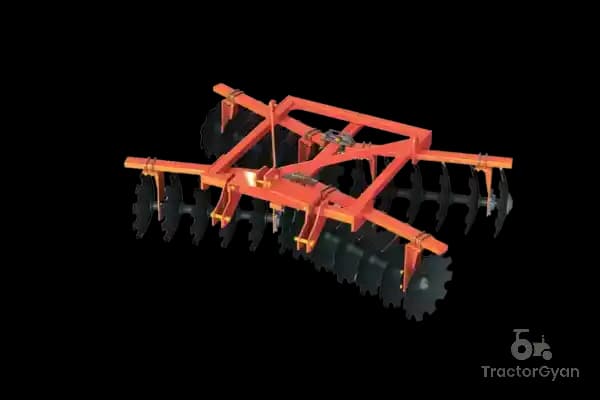

About Landforce Disc Harrow Tandem
Landforce Disc Harrow Tandem Models
| Specification | 10x10 (18" Disc) | 10x10 (20" Disc) | 12x12 (18" Disc) | 12x12 (20" Disc) |
|---|---|---|---|---|
| Working Width | 2295 mm | 2295 mm | 2695 mm | 2695 mm |
| Weight | 510 kg | 565 kg | 530 kg | 585 kg |
| gang bolt | 32mm (Sq. Solid Rod) | 32mm (Sq. Solid Rod) | 32mm (Sq. Solid Rod) | 32mm (Sq. Solid Rod) |
| No. of Disc | 20 | 20 | 24 | 24 |
| Type of Disc | Notched Disc/Plain Disc | Notched Disc/Plain Disc | Notched Disc/Plain Disc | Notched Disc/Plain Disc |
| Disc Diameter | 460 mm | 511 mm | 460 mm | 511 mm |
| Distance Between Discs | 228 mm | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 8 (UCF-211) | 8 (UCF-211) | 8 (UCF-211) | 8 (UCF-211) |
| Tractor HP | 45-50 HP | 55-60 HP | 55-60 HP | 55-60 HP |
Disc Harrow Tandem - 10x10 (18" Disc)
Working Width
2295 mm
Weight
510 kg
gang bolt
32mm (Sq. Solid Rod)
No. of Disc
20
Type of Disc
Notched Disc/Plain Disc
Disc Diameter
460 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UCF-211)
Tractor HP
45-50 HP
Disc Harrow Tandem - 10x10 (20" Disc)
Working Width
2295 mm
Weight
565 kg
gang bolt
32mm (Sq. Solid Rod)
No. of Disc
20
Type of Disc
Notched Disc/Plain Disc
Disc Diameter
511 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UCF-211)
Tractor HP
55-60 HP
Disc Harrow Tandem - 12x12 (18" Disc)
Working Width
2695 mm
Weight
530 kg
gang bolt
32mm (Sq. Solid Rod)
No. of Disc
24
Type of Disc
Notched Disc/Plain Disc
Disc Diameter
460 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UCF-211)
Tractor HP
55-60 HP
Disc Harrow Tandem - 12x12 (20" Disc)
Working Width
2695 mm
Weight
585 kg
gang bolt
32mm (Sq. Solid Rod)
No. of Disc
24
Type of Disc
Notched Disc/Plain Disc
Disc Diameter
511 mm
Distance Between Discs
228 mm
Bearing Hub
8 (UCF-211)
Tractor HP
55-60 HP
