Same deutz fahr Agrolux 60 4WD vs Massey ferguson 9563 Smart (Trem-IV) vs Sonalika Tiger DI 60 4WD CRDS
Share

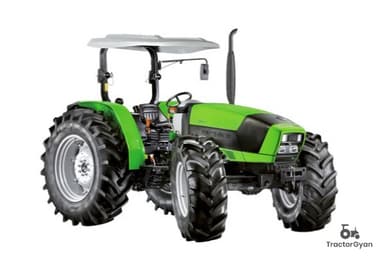

Same deutz fahr Agrolux 60 4WD HP60
Cylinder3
VS
Massey ferguson 9563 Smart (Trem-IV) HP63
Cylinder3
VS
AD
Sonalika Tiger DI 60 4WD CRDS HP60 HP Cat
Cylinder4
Hide Common Features
Specification
Same deutz fahr Agrolux 60 4WD
Massey ferguson 9563 Smart (Trem-IV)
Sonalika Tiger DI 60 4WD CRDS
Engine
- Engine NameNANACRDS, 4-Stroke Naturally Aspirated common Rail Direct Injection Engine
- HP606360 HP Cat
- Displacement3000 CC2590 cc4712 cc
- Cylinder334
- Rated RPM220022002000
- Cooling SystemWater CooledNAWater cooled
- Fuel Tank Capacity70 Lit65 L65 L
- Air FilterOil BathNADry Type
Transmission
- Transmission TypeFully Constant Mesh, Synchromesh Gear box, Helicar box With ForcedPartial Synchro Mesh (in 12+4 Varient) / Comfimesh (in 8+8 Varient)Constant Mesh
- Number of Gears8 Forward + 2 Reverse /12 forward + 3 Reverse12 Forward + 4 Reverse (in LPTO/IPTO Verient) /8 Forward + 8 Reverse (in IPTO Varient)12 Forward + 12 Reverse/ 20 Forward + 20 Reverse with Creeper*
- Clutch TypeSingle/Double With independent PTO clutch leverDual Clutch (in LPTO Varient) /Split Torque Clutch (in IPTO Varient)Double with IPTO
- Clutch SizeNANANA
- Max Forward SpeedNA31.3 kmph0.51 kmph (Creeper)
- Max Reverse SpeedNANANA
PTO
- PTO HP51.6NANA
- PTO TypeMechanical IndependentLive PTO Six-splined shaft/IPTO Six-splined shaftRPTO
- PTO Speed540/750540 RPM @ 1789 ERPM540
Dimensions & Weight
- Length3315 MM3890 mmNA
- Width2285 MM1830 mmNA
- HeightNANANA
- Wheel Base1975 MM1972 mmNA
- Weight2420 KG2810 kgNA
- Ground Clearance400 MMNANA
- Turning Radius3700 MMNANA
Hydraulics & Steering
- Lifting Capacity2100 Kg2500 kg2200 Kg
- Hydraulic ControlAutomatic depth and draft controlNANA
- SteeringManual/Power SteeringPower SteeringPower Steering
- BrakesHydraulic operated oil Immerse sealed disc BrakesOil Immersed BrakesOil Immersed Brakes
- 3-Point Linkage4 Top link PositionNANA
Other Specifications
- Wheel Drive4WD4WD4WD
- Tyre SizeF(12.4 x 20 R(16.9 x 28)9.5x24 (Front) and 16.9x28 (Rear)9.5x24 (Front) and 16.9x28 (Rear)
- Price Range802500-8859381092188-1251563994000-1130000
- Warranty2000 Hour / 2 YearNA5 Years
- SeriesAgrolux SeriesSmart SeriesTiger Series
