Swaraj 843 XM 4WD vs Swaraj 724 XM
Share

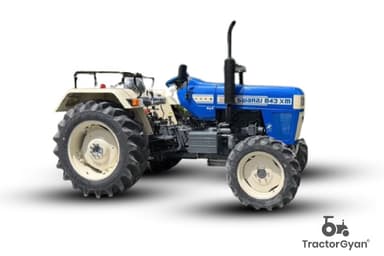

Swaraj 843 XM 4WD HP41-50
Cylinder4
VS
Swaraj 724 XM HP25-30
Cylinder2
VS
Hide Common Features
Specification
Swaraj 843 XM 4WD
Swaraj 724 XM
Engine
- Engine NameSK342NR1RV-2 XM + 3A, 4 Stroke, Direct injection
- HP41-5025-30
- Displacement3307 cc1824 cc
- Cylinder42
- Rated RPM20001800
- Cooling SystemNAWater Cooled with no loss tank
- Fuel Tank Capacity56 LNA
- Air Filter3 Stage wet Air Cleaner3 - Stage Oil Bath Type
Transmission
- Transmission TypePartial Constant Mesh (Center Shift)NA
- Number of Gears8 F + 2 R8 F + 2 R
- Clutch TypeSingle Clutch/ IPTOHeavy Duty Single Dry Plate Type
- Clutch SizeNA280 mm
- Max Forward SpeedNA2.19 - 27.78 Kmph
- Max Reverse SpeedNA2.74-10.77 Kmph
PTO
- PTO HP28.18 kW16.3 kW
- PTO Type4 multi-speed forward and 1 reverse speedN/A
- PTO Speed54021 Spline 1650 r/min for rated engine speed at 1000 r/min, 6 Spline 540 r/min (optional)
Dimensions & Weight
- Length3550 mm3320 mm
- Width1790 mm1675 mm
- HeightNA2270 mm
- Wheel Base2170 mm1935 mm
- WeightNA1750 Kg
- Ground ClearanceNA375 mm
- Turning RadiusNANA
Hydraulics & Steering
- Lifting Capacity1500 kg1000 kg
- Hydraulic ControlNALive Hydraulic- Position control, automatic draft control, mix control and hydraulic lift pump
- SteeringPower SteeringHeavy duty single drop arm steering, Power steering (optional)
- BrakesOil Immersed BrakesSelf energizing Water sealed disk brakes and parking brakes
- 3-Point Linkage3 Point Linkage3 point linkage suitable for Cat- I & II type implements
Other Specifications
- Wheel Drive4WD2WD
- Tyre Size8.30x20 (Front) and13.6x28 (Rear)6x16 (Front) and 12.4x28/13.60x28 (optional) (Rear)
- Price RangeN/A454688-473438
- Warranty6 Years2 Years / 2000 Hours
- SeriesXM SeriesXM Series
