VST VT 224 1D vs Swaraj 724 FE 4wd vs Sonalika GT 20 Rx
Share
VST VT 224 1D HP22
Cylinder3
VS

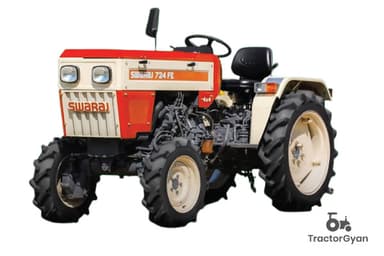

Swaraj 724 FE 4wd HP20-30
Cylinder2
VS
AD

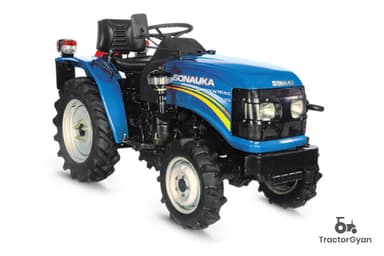

Sonalika GT 20 Rx HP20
Cylinder3
Hide Common Features
Specification
VST VT 224 1D
Swaraj 724 FE 4wd
Sonalika GT 20 Rx
Engine
- Engine NameV3D4 Stroke, Direct injectionMITSUBISHI
- HP2220-3020
- Displacement980 CC1823 cc959 CC
- Cylinder323
- Rated RPM30001800 RPM2700
- Cooling SystemWater CooledWater Cooled with No loss tank.NA
- Fuel Tank Capacity18 L24.5 L31.5 Lit
- Air Filter3 Stage oil bathDry Type Dual Element with dust unloaderOil Bath With Pre Cleaner
Transmission
- Transmission TypeConstant MeshNASliding Mesh
- Number of Gears6 Forward + 2 Reverse8 F + 4 R6 Forward + 2 Reverse
- Clutch TypeSingle Dry TypeSingle diaphragm clutchSingle Clutch
- Clutch SizeNA10 inchNA
- Max Forward Speed20.23 KmphNA23.9 kmph
- Max Reverse Speed7.72 KmphNA12.92 kmph
PTO
- PTO HP1815.9 kW10.3
- PTO TypeMulti Speed PTON/AMulti Speed PTO
- PTO Speed540 & 796@2340 RPM540, 540E540 & 540E
Dimensions & Weight
- Length2540 mm2932 mm2580 MM
- Width1085 mm1120 mm970 MM
- Height1250 mm1480 mmNA
- Wheel Base1420 mm1762 mm1420 MM
- Weight740 Kg1250 kg820 KG
- Ground Clearance190 mm260 mm200 mm
- Turning Radius2700 mmNA235 MM
Hydraulics & Steering
- Lifting Capacity500 Kg750 Kg800 Kg
- Hydraulic ControlAutomatic depth and draft controlLive Hydraulics with ADDC, Position controlADDC
- SteeringMechanical SteeringBalanced Power SteeringMechanical
- BrakesWater Proof Internal Expanding Shoeoil immersed multi disc brakeDry Disc Brakes / Oil Immersed Brakes
- 3-Point LinkageNA3 point linkage suitable for Category- I &II type implements pinsNA
Other Specifications
- Wheel Drive4WD4WD4WD
- Tyre SizeF(5.00X12), R(8.3 X 20)6.0X14 (Front) and 8.3X24 (Rear)5.0x12/5.20x14,8.0x18
- Price Range342188-393750445313-473438304688-342188
- Warranty2000 Hour / 2 Year6 Years5 years or 5000 hours
- SeriesNAFE SeriesNA
